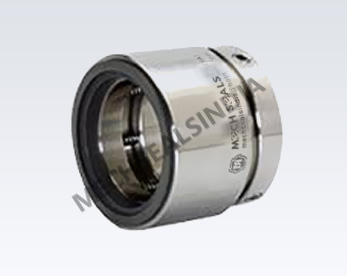

Capsulated Spring Seal

Seal Type : MSI-1010

The Type MSI-1010CS is capsulated balance seal designed for media containing solid slurry particles. The springs are protected from solidifying media resulting in high reliability of the seal.This seals are independent of direction of rotation.

Product Features:
  • Single Acting
  • Capsulated Spring
  • Independent in the Direction of Rotation
  • General Chemicals
  • Media Containing solids particles
  • Acids & Alkalies
Material of Construction:
Seal body : AISI 316, Alloy-20, Hastelloy C
Seal Faces: Carbon, Silicon Carbide, Ceramic ( 99.5% ), PTFE, GFT, CFT
Springs:   AISI 316, Alloy-20,  Hastelloy C
Elastomers: Viton, EPDM, TTV, FEP, Aflas, Kalrez
Operating Limits:
Pressure: upto 6 Bar
Temperature: -20°C to +100°C
Shaft Dia: 18 to 100mm
