Cartridge Seal

Seal Type : MSI-CT701

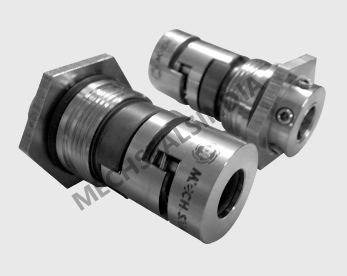

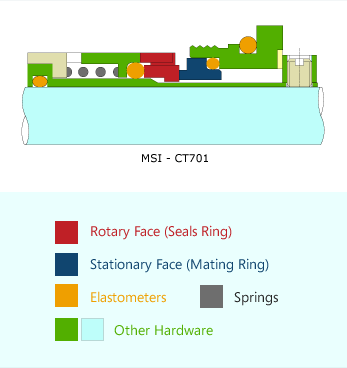

The MSI-CT701 type is a simple-to-install, unitized cartridge mounted  mechanical seal which requires no measuring for installation. The seal faces are protected from damage and contamination from dirt and foreign particles.

These types of Seals are desidned for pumps handling slurries, syrups and other fluids that solidify or polymerized with the change in temperature.

Product Features:
  • Single Acting.
  • Independent in the Direction of Rotation.
  • Easy to install
  • Cartridge Design.
  • Slurry pumps
  • Pulp & paper
  • Petrochemicals,Refineries
  • General Chemicals.
Material of Construction:
Seal body : AISI 304, AISI 316
Face Material: Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide
Elastomers:   Viton, EPDM, Nitrile, Neuprene, Aflas, PTFE, GFT
Operating Limits:
Pressure: Upto 05 Bar
Temperature: -20°C to + 180°C
Shaft Dia: 12mm to 22mm
