Cartridge Seal

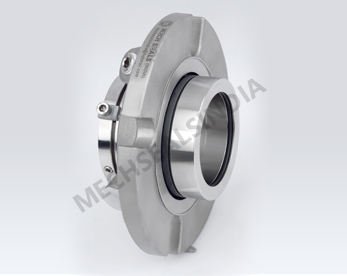

Seal Type : CT702B

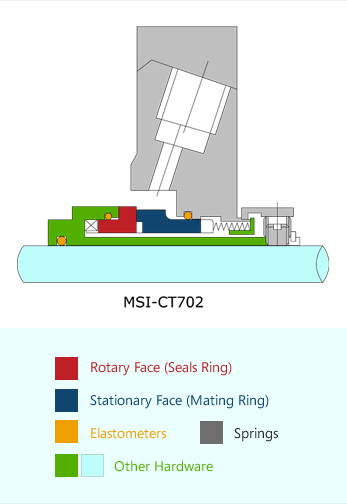

The MSI-CT702B type is a simple-to-install, unitized cartridge mounted, balanced, multiple spring mechanical seal which requires no measuring for installation. The seal faces are protected from damage and contamination from dirt and foreign particles.

Simply slide the seal onto the shaft, bolt down the gland, tighten the set screws, and remove the location plate. The seal faces are positioned in the gland for maximum protection. The flush position maximizes face cooling.

Product Features:
  • Single Acting
  • Independent in the Direction of Rotation
  • Easy to install
  • Cartridge Design
  • Sludge & Syrup pump
  • Petroleum Refinery
  • Chemical,Refineries
Material of Construction:
Seal body : AISI 304, AISI 316, Hast’C’, Alloy-20
Face Material: Carbon, Silicon Carbide, Tungsten Carbide,
Ceramic (99.5%)
Elastomers:   Viton, EPDM, Nitrile, Neuprene, Aflas, Kalrez, PTFE, GFT
Operating Limits:
Pressure: 5 to 25 Bar
Temperature: -20°C to + 200°C
Shaft Dia: 20mm to 100mm
