Conical Spring

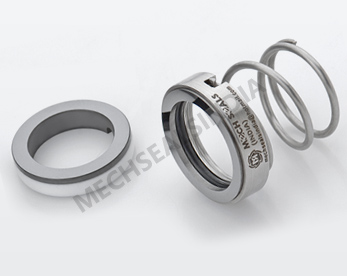

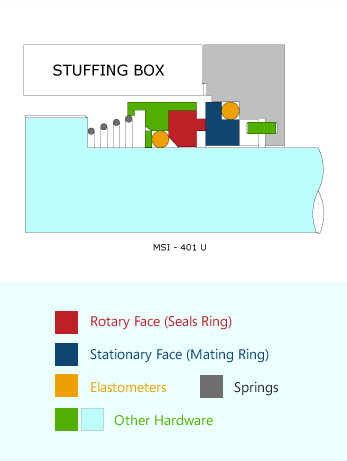

Seal Type : MSI-401U

The Series 401 is  a single conical unbalance mechanical seal.These type of seals are dependent of shaft  direction of rotation. Clockwise rotating Shaft Required Right Handed Spring & Anticlockwise rotating Shaft Required Left Handed Spring.

The Rotating Shaft transmit the torque to the spring. This seal are easy to install.
Product Features:
  • Dependent in the Direction of Rotation
  • Unbalanced
  • Internally Mounted
  • Water Pumps
  • Chemical Process pumps
  • Petroleum Refinery
Material of Construction:
Seal body : AISI 304, AISI 316
Face Material: Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide
Secondary seal:           Viton, EPDM,Nitrile,
Operating Limits:
Pressure: Upto 08 Bar
Temperature: -20°C to +200°C
Shaft Dia: 10mm to 100mm
