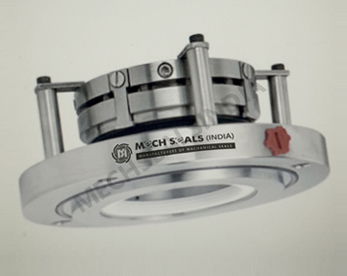

Dry Seal

Seal Type : MSI-B801

Design features:

Type MSI-B801 design are basically used as dry running seals and can be used for corrosive services.The Advantage of these Seals are that it does not require any lubricant or Quenching for cooling.

These seals are use for mixers, agitators and reactors for clean ability. These seals were developed for sanitary applications where product contamination from barrier fluids is unacceptable.Hence this Seals are used.

Product Features:
  • Single Acting
  • Independent in the Direction of Rotation
  • Easy to install
  • Corrosive Applications
  • Pharma Reactors
  • Petroleum Refinery
  • General Chemicals
Material of Construction:
Seal body : AISI 304, AISI 316, Hast’C’, Alloy-20
Face Material: Carbon, Silicon Carbide, Tungsten Carbide, Ceramic ( 99.5% ),
Elastomers:   Viton, Aflas, FEP, Kalrez,, TTV, PTFE, GFT
Operating Limits:
Pressure: upto 10 Bar
Temperature: upto 120°C
Shaft Dia: 20mm to 150mm
