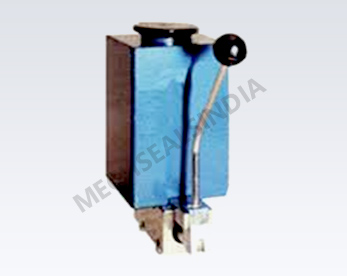

Feed Pump/ Hand pump
Feed pump is specially made for Thermosyphon vessel.This is normally recommended for API plan 53 or API plan 54. The function of the Feed Pump is to recharge the Thermosyphon vessel with additional quantity of barrier fluid when Thermosyphon is under pressure and liquid level is low due to mechanical seal failure.
Operating Limits:
| Capacity: | 3 Litre |
| Design Pressur: | 25 bar |
| Hydraulic Test pressure: | 20 bar |
| Temperature: | 100°C |
Material of Construction:
| Feed Pump Body : | AISI 304, AISI 316 |
| Empty Weight : | 3.5 kg (Approx.) |
