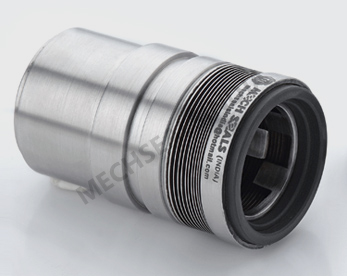

Metal Bellow

Seal Type : MSI-601

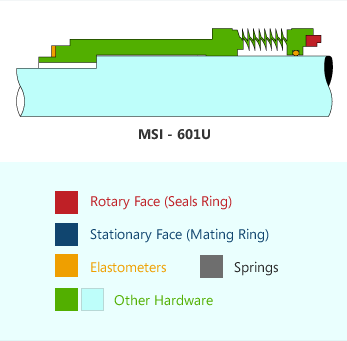

The Series 601 are specially developed mechanical seal suitable for high temperature. The bellow is constructed by welding a series of diaphragms together at the edges. Each welded set of plates has a fixed axial movement along the shaft.

Type 601 having a grafoil, is used as a secondary member having excellent temperature range upto 400°C. It has an shrunk fit seal face which minimize face distortion. And in type 602U having ‘O’ ring due to change in its application. Bellow will eliminates the need of spring and provide flexibility to the seal.
Product Features:
  • Self cleaning, non-clogging construction
  • Highly corrosion resistant
  • High performance
  • Easy to install
  • Petrochemicals
  • Refineries
  • Soap Plant
  • Chemical Plants
Material of Construction:
Seal body : SS 316, Carpenter-42, Alloy 20, Hastelloy-C
Material of bellow: AM 350
Face Material: Carbon, Silicon Carbide, Tungsten Carbide
Elastomers:   Viton, Aflas, Grafoil, Kalrez.
Operating Limits:
Pressure: Upto 18 Bar
Temperature: -20°C to + 400°C
Shaft Dia: 20mm to 100mm
