Multi Spring Seal

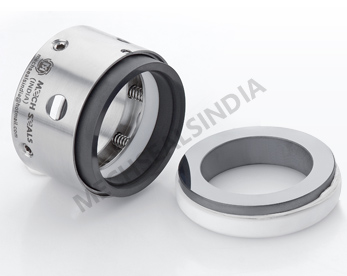

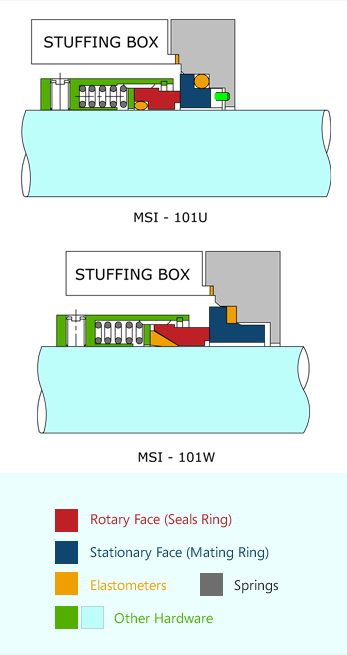

Seal Type :- MSI-101U & MSI-101W

The Series MSI-101 are multi spring mechanical seal made for various applications.It’s compact Design is easy to install and also easy for maintainance.This seals are independent of direction of rotation.

For easy installation and removal of the seal, all components are held together with the snap ring.All parts are interchangeable, one can easily convert 101U  to 101W by changing its seal ring and secondary seal.This concept is ideal for Stock rationalization.

Product Features:
  • Single Acting
  • Independent in the Direction of Rotation
  • Internally Mounted
  • Unbalanced
Applications:
  • Petrochemicals
  • Petroleum Refinery
  • General Chemicals
  • Light Hydrocarbon
Material of Construction:
Seal body : AISI 304, AISI 316, Hastelloy-C, Alloy-20
Seal Faces : Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide
Elastomers :
MSI-101U : Viton, EPDM, TTV, FEP, Aflas, Kalrez
MSI-101W : PTFE, GFT
Operating Limits:
Pressure : upto 6 Bar
Temperature : -20°C to +200°C
Shaft Dia : 12mm to 100mm
