Multi Spring Seal

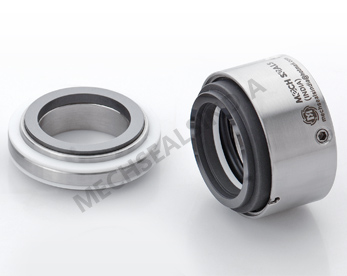

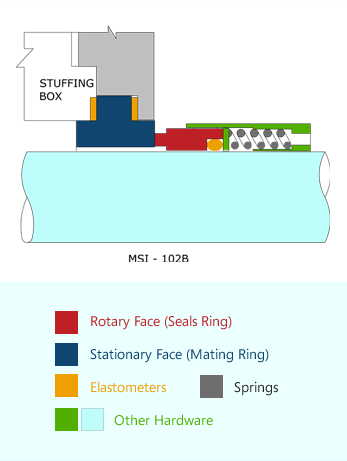

Seal Type : MSI-102BThe type MSI-102B is multi spring externally mounted balanced mechanical seal.It has ‘O’ Ring as a Secondary Sealing member.This seal are independent of direction of rotation.
Due to it’s design it can be use for corrosive services as its metallic components like thrust ring, springs, retainer body etc does not come in direct contact of fluid.
Product Features:
- Single Acting
- Independent in the Direction of Rotation
- Internally Mounted
- Balanced
Applications:
- Corrosive Services
- Acids & Alkalies
- Petrochemicals
- General & Light Chemicals
Material of Construction:
| Seal body : | AISI 304, AISI 316, Hastelloy-C, Alloy-20 |
| Seal Faces : | Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide |
| Elastomers : | Viton, EPDM, TTV, FEP, Aflas, Kalrez, PTFE, GFT, CFT |
Operating Limits:
| Pressure : | upto 8 Bar |
| Temperature : | -20°C to + 180°C |
| Shaft Dia : | 12mm to 100mm |
