Multi Spring Seal

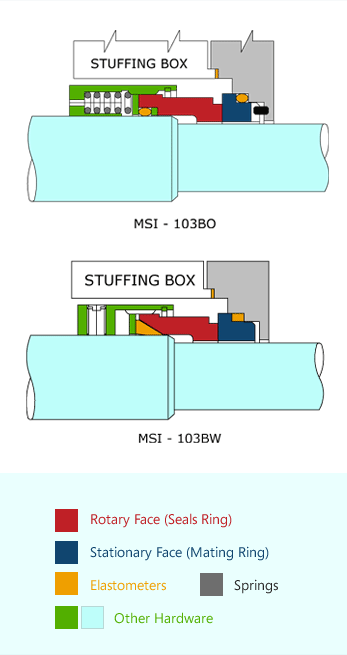

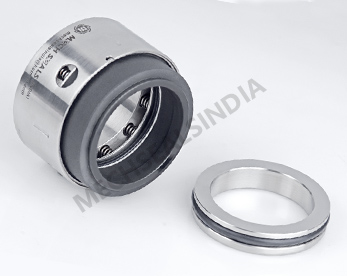

Seal Type : MSI-103BO & MSI-103BWThe Series MSI-103 are multi spring seals used for universal applications. It is internally mounted balance mechanical seal. It may install to all types of centrifugal pumps due to its compact design.
By changing it’s seal ring component it can be easily convert to ‘Wedge type’ ( MSI-103BW from ‘O’ Ring type MSI-103BO or vice versa depends on it’s application.
Product Features:
- Single Acting
- Independent in the Direction of Rotation
- Internally Mounted
- Balanced
Applications:
- Petrochemicals
- Petro Refinery
- General Chemicals
- Light Hydrocarbon
Material of Construction:
| Seal body : | AISI 304, AISI 316, Hastelloy-C, Alloy-20 |
| Face Material: | Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide |
| Elastomers : | |
| MSI-103BO : | Viton, EPDM, TTV, FEP, Aflas, Kalrez |
| MSI-103BW : | PTFE, GFT, CFT |
Operating Limits:
| Pressure : | upto 35 Bar |
| Temperature : | -20°C to + 200°C |
| Shaft Dia : | 12mm to 100mm |
