Multi Spring Seal

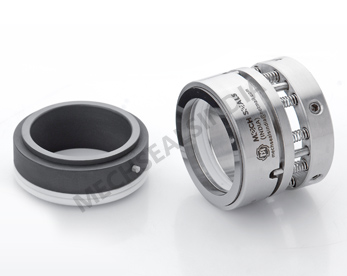

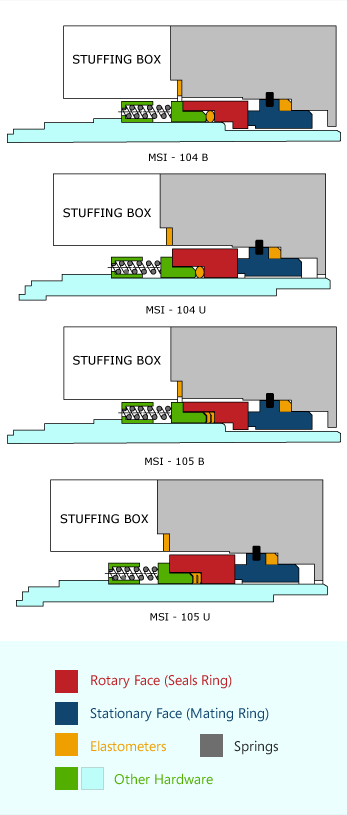

Seal Type : MSI-104B, MSI-104U, MSI-105B & MSI-105UThis Series MSI-104 & MSI-105 are multi spring Balanced and Unbalanced designed mechanical seal.This seals are independent in the direction of rotation.
Multispring design exerts uniform pressure on seal faces and balances primary ring makes it suitable for high pressure. It may install to all types of centrifugal pumps.
Product Features:
- Single Acting
- Independent in the Direction of Rotation
- Balanced & Unbalanced
Applications:
- Petrochemicals
- Petro Refinery
- General Chemicals
- Light Hydrocarbon
Material of Construction:
| Seal body : | AISI 304, AISI 316, Hastelloy-C, Alloy-20 |
| Face Material: | Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide |
| Elastomers : | |
| MSI-104B / 1054U : |
Viton, EPDM, TTV, FEP, Aflas, Kalrez |
| MSI- 105B / 105U: | PTFE, GFT, CFT |
Operating Limits:
| Pressure : | Unbalance Seal 06 bar & Balance Seal upto 30 bar |
| Temperature : | -20°C to + 200°C |
| Shaft Dia : | 15mm to 100mm |
