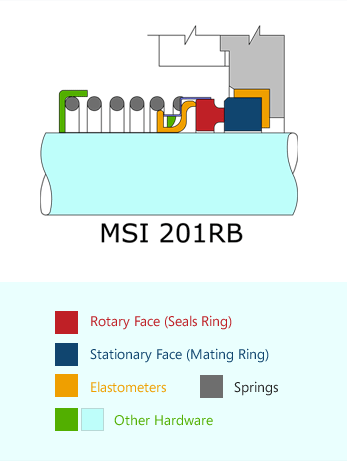

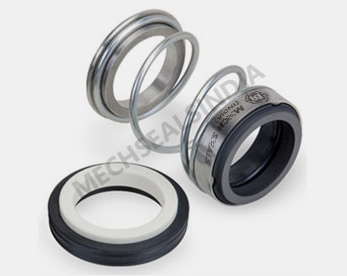

Rubber Bellow Seal

Seal Type : MSI-201RB

The Type MSI-201RB is single coil spring rubber bellow seal. Most versatile and widely used in a variety of applications s it is easy to install and economical. Shaft run out is compensated by rubber bellow and spring due to its self aligning capability.

The unique rubber bellow secondary seal provide a high degree of axial flexibility to compensate for misalignment. Elastomeric bellow protect Shaft/Sleeve from fretting. Due to single coil spring the seal will not clogged in Effluent containing particles.

Product Features:
  • Single Acting
  • Unbalanced
  • Independent in the Direction of Rotation
  • Internally Mounted
  • Water Pumps
  • Submersible Pumps
  • Sewage Pumps
Material of Constructions:
Seal Body : AISI 304, AISI 316
Seal Faces : Carbon, Silicon Carbide, Ceramic
Elastomers : Viton, EPDM, Nitrile, Neuprene
Operating Limits:
Pressure : upto 10 Bar
Temperature : -20°C to +160°C
Shaft Dia : 20mm to 100mm
