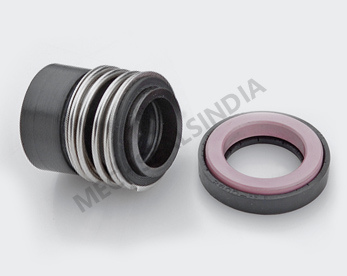

Rubber Bellow Seal

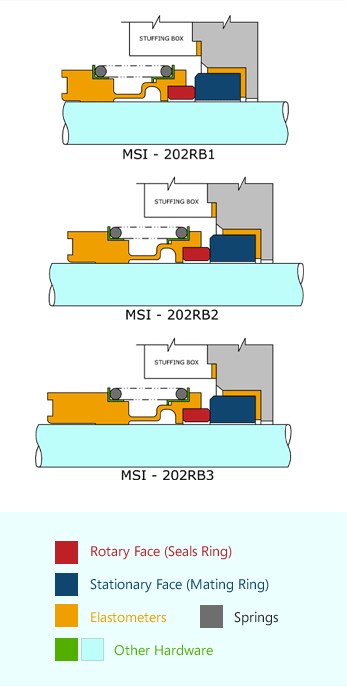

Seal Type : MMSI-202RBThe Type MSI-202RB is single coil spring rubber bellow seal used for water and sewage containing slurries. Shaft run out is compensated by rubber bellow and spring due to its self aligning capability.
Elastomeric Bellow protect Shaft/Sleeve from Fretting. Due to single coil spring the seal will not clogged in Effluent containing particles.Product Features:
- Single Acting
- Unbalanced
- Independent in the Direction of Rotation
- Internally Mounted
Applications:
- Water Pumps
- Submersible Pumps
- Sewage Pumps
Material of Construction:
| Seal Body : | AISI 304, AISI 316 |
| Seal Faces : | Carbon, Silicon Carbide, Ceramic |
| Elastomers : | Viton, EPDM, Nitrile, Neuprene |
Operating Limits:
| Pressure : | upto 10 Bar |
| Temperature : | -20°C to +160°C |
| Shaft Dia : | 15mm to 100mm |
