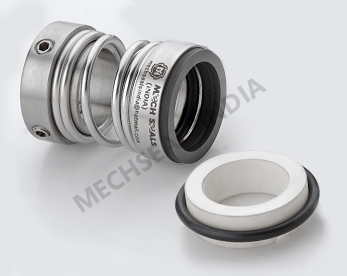

Single Spring Seal

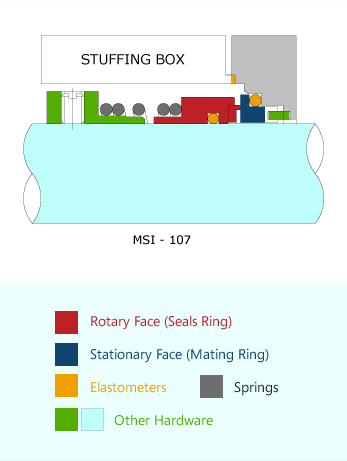

Seal Type : MSI-107

The Series  107 is single coil Unbalance mechanical seal. It is internally mounted mechanical seal and also easy to instal.It is dependent in the direction of  shaft rotation. Clockwise rotating shaft required right handed spring & Anticlockwise rotating shaft required left handed spring.

It is simple in construction.rotary seal ring is driven by the motion transmitted by the shaft to the spring.

Product Features:
  • Single Acting
  • Dependent in the Direction of Rotation
  • Unbalanced
  • Internally Mounted
  • Dirty Water & Slurry
  • Petroleum Refinery
  • General Chemicals
Material of Construction:
Seal body : AISI 304, AISI 316, Hastelloy-C, Alloy-20
Face Material: Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide
Elastomers : Viton, EPDM, TTV, FEP, PTFE, Aflas, Kalrez
Operating Limits:
Pressure: Upto 06 Bar
Temperature: -20°C to +200°C
Shaft Dia: 15mm to 100mm
