Single Spring Seal

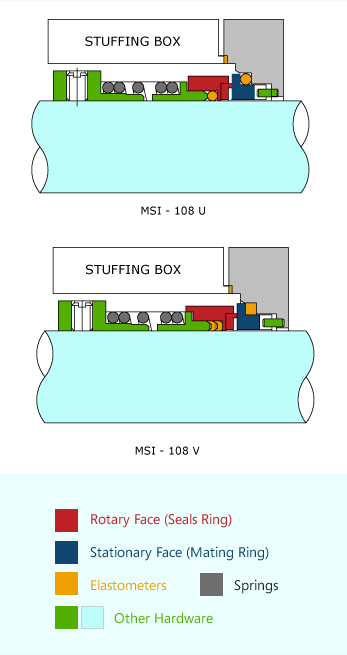

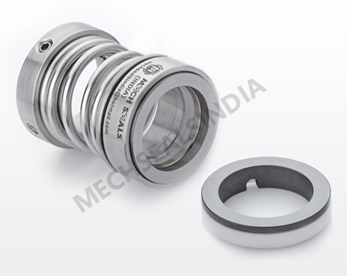

Seal Type : MSI-108U & MSI-108VThe Series 108 is bidirectional single spring Unbalance mechanical seal.This series of mechanical seal are design for the dirty media type applications.It is Independent in the direction of rotation. It is simple in construction and easy to instal.
Torque transmission for seal ring will be done through its drive lug.All parts of the Seal are Interchangeable,one can easily convert MSI-108V to MSI-108U only by changing it’s Elastomers.
Product Features:
- Single Acting
- Independent in the Direction of Rotation
- Unbalanced
Applications:
- Crystallizing Slurry
- Dirty Water & Slurry
- Petroleum Refinery
Material of Construction:
| Seal body : | AISI 304, AISI 316, Hastelloy-C, Alloy-20 |
| Face Material: | Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide |
| Elastomers : | |
| MSI-108U : | Viton, EPDM, TTV, FEP, Aflas, Kalrez |
| MSI- 108V : | PTFE, GFT, CFT |
Operating Limits:
| Pressure: | Upto 06 Bar |
| Temperature: | -20°C to +200°C |
| Shaft Dia: | 15mm to 100mm |
