Single Spring Seal

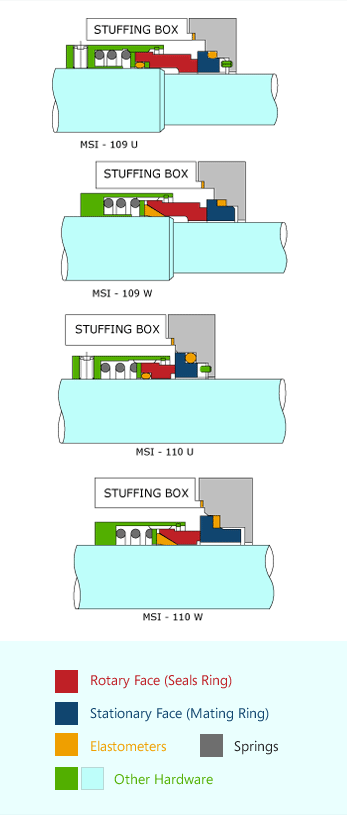

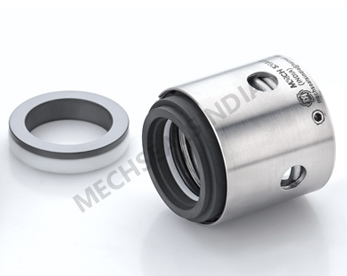

Seal Type : MSI-109U & MSI-109W MSI-110U & MSI-110WThe Series 109 & 110 are single Balance & Unbalance internally mounted mechanical seal. This series of mechanical seal are design for the dirty media type applications.It is Independent in the direction of rotation.For easy installation and removal all component of the seal are held together by snap ring.
All parts of the seal are interchangeable, one can convert MSI-109U to MSI-109W and MSI-110U to MSI-110W only by changing it’s seal ring and it’s elastomer. This is ideal for stock rationalization.
Product Features:
- Single Acting
- Independent in the Direction of Rotation
- Balance & Unbalance
- Internally Mounted
Applications:
- Petrochemicals
- Petroleum Refinery
- General Chemical
Material of Construction:
| Seal body : | AISI 304, AISI 316, Hastelloy-C, Alloy-20 |
| Face Material: | Carbon, Silicon Carbide, Ceramic ( 99.5% ), Tungsten Carbide |
| Elastomers : | |
| MSI-109U / 110U : |
Viton, EPDM, TTV, FEP, Aflas, Kalrez |
| MSI-109W / 110W : |
PTFE, GFT, CFT |
Operating Limits:
| Pressure: | Unbalance upto 08 Bar, Balance upto 30 Bar |
| Temperature: | -20°C to +200°C |
| Shaft Dia: | 15mm to 100mm |
