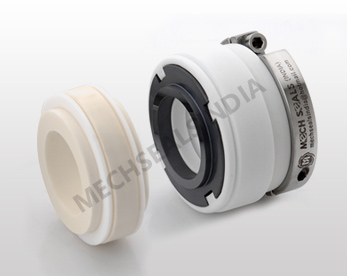

Teflon Bellow Seal

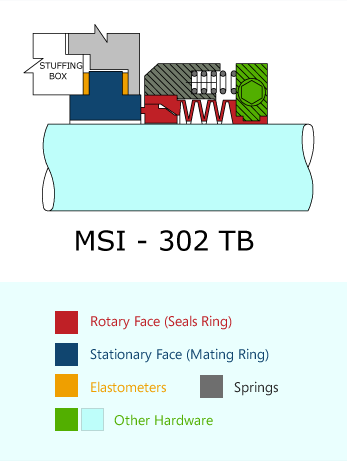

Seal Type : MSI-302TBThe Type MSI-302TB is Externally mounted low pressure mechanical seal with metal free contact parts due to corrosive pumping media.Series MSI-302TB is designed for highly corrosive chemicals. The springs are protected from corrosive chemicals resulting in high reliability of the seal.
This seals are independent of direction of rotation. Seal ring face can be changed or replaced due to its design feature.The face is positively driven by integral lugs which is on bellow,it imparts smooth drive to the face.
Product Features:
- Single Acting
- Capsulated Spring
- Independent in the Direction of Rotation
- Externally Mounted
Applications:
- Extremely Corrosive Services
- Media Containing solids
- Acids & Alkalies
Material of Construction:
| Seal body : | AISI 316, Alloy-20, Hastelloy C |
| Seal Faces : | Carbon, Silicon Carbide, Ceramic ( 99.5% ), PTFE, GFT, CFT |
| Springs : | AISI 316, Alloy-20, Hastelloy C |
| Elastomers : | PTFE, GFT, CFT |
Operating Limits:
| Pressure: | upto 6 Bar |
| Temperature: | -20°C to +100°C |
| Shaft Dia: | 18mm to 100mm |
