Wave Spring

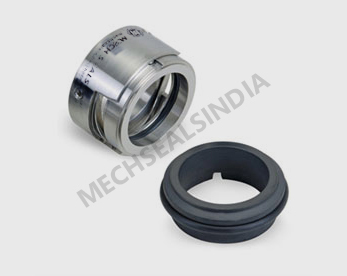

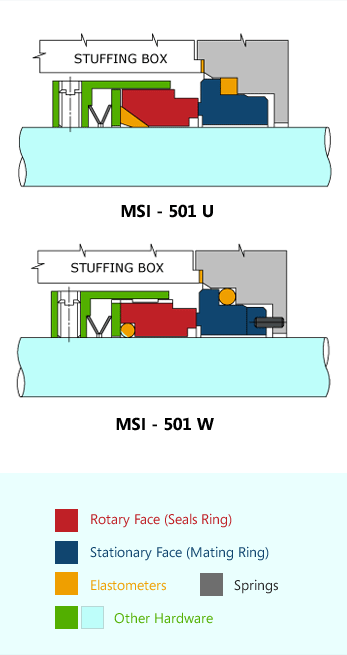

Seal Type : MSI-501U & MSI-501W

The Series MSI-501 is single Wave springs seal designed for universal applications and ideal suited for standardization.The main advantage of these seal is that it has a wave spring which is laterally stable, lightweight, compact, and easy to install.

Torque transmission will be done by retainer shell punch to seal ring. These seals are also used in Dirty applications as spring clogging does not occurs. One can convert MSI-501U  to MSI-501W by changing only it’s Seal Ring & Elastomers. This is ideal for stock rationalization

Product Features:
  • independent in the Direction of Rotation
  • Unbalanced
  • Internally Mounted
  • Abrassive & Sewage handling pumps
  • High Viscosity Handling pumps
  • General Chemicals Application
Material of Construction:
Seal body : AISI 304, AISI 316
Face Material : Carbon, Silicon Carbide, Tungsten Carbide, Ceramic ( 99.5% )
Elastomers :
MSI-501U : Viton, EPDM, TTV, FEP, Aflas, Kalrez
Operating Limits:
Pressure : Upto 10 Bar
Temperature : -20°C to +200°C
Shaft Dia : 15mm to 100mm
